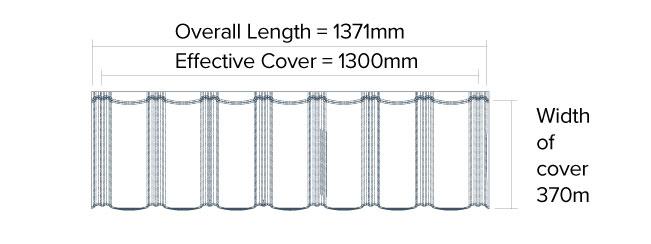

PLAN DRAWING
Chateau Metal Tile
- About
- Metalcraft Lightweight Chateau Metal Tiles provide an economical and durable roofing option. Metal Tiles provide a quality finish to any dwelling and offer a cost saving solution in comparison with heavier alternative roof tiles, as they require less reinforcing timber in the roof bracing.The Metalcraft Chateau Tile has a scalloped finish, which affords a timeless look to any style home.
- Minimum Pitch
- 12 Degrees
- Steel Gauge
- 0.39 G300 Colorsteel Endura
- Weight
- Weight (painted): 2.1kg (chip coated): 3.0kg
- Options
- Pre painted Coloursteel Endura and Chip Coated
- Tiles per m2
- 2.1 Tiles per m2
- Availabilty
- All Metalcraft Roofing Branches
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Information Brochure
BPIS Building Product Information Sheet
Loadspan and Fixings
Installation Details
Installation Guide
Masterspec Specification Link
What now?
COLORSTEEL® COLOUR RANGE FOR TILES
All colours are available in COLORSTEEL® ENDURA® Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. Chip coating is also an option please refer to information brochure.
TEMPEST (Ebony)
RANGITOTO RISE (Flaxpod)
BRACKEN (Ironsand)
GUN POWDER (Grey Friars)
GREY WACKE (Sandstone Grey)
STORMY SKY (Windsor Grey)
