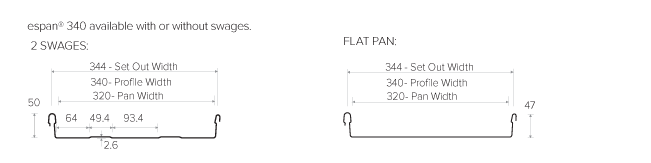

CROSS SECTIONAL LINE DRAWING

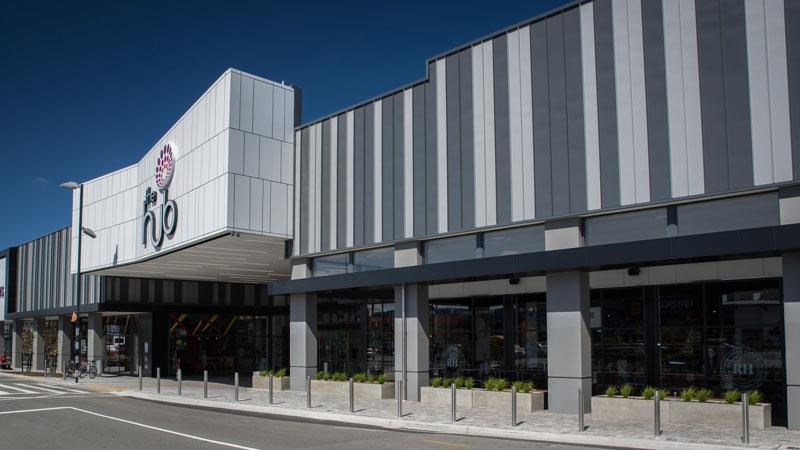

Espan® 340

Innovative Profile
Espan® has been designed for style and performance in mind and is Metalcraft Roofing’s new standing seam roof profile. The high ribs create strong defined shadow lines and combined with concealed fixings provide for superior weather performance.
Profile Cover Width (Nominal)
340 mm
Sheet Width (Nominal)
354 mm
Minimum Pitch
3° (minimum pitch will increase depending on sheet lengths - please refer to information sheet.)
Application
Residential and Commercial
Orientation
Roofing and Vertically Laid Wall Cladding
Availability
Available from all Metalcraft Roofing branches.
Material Options
COLORSTEEL® Maxam™ and COLORSTEEL Altimate®, for other please ask your local branch.

Downloads

Download All

Installation details available for download in PDF, DWG, DXF & RVT files

Information Brochure

Eco Choice Certificates

BPIS Building Product Information Sheet

Loadspan and Fixing Tables - Steel

Residential Roof Details

Residential Vertical Wall Cladding Details

Commercial Roof Details

Commercial Vertical Wall Cladding Details

Espan Prickle Details

Penetration Details

Metalcraft Roofing Company Profile

COLORSTEEL® Fire Testing of Coated Steel Products

COLORSTEEL® Environmental Categories

COLORSTEEL® Colour Brochure

COLORSTEEL® Maintenance Recommendations

COLORSTEEL® Maxam™ Product Information Sheet

Masterspec Specification Link

NZMRM Code of Practice Version September 2023

Metalcraft Profile Spec Details

INNOVATIVE CLIP ELIMINATES NEED FOR A SUBSTRATE

Espan® has a unique clip system that allows for concealed fixings. The Espan® roofing simply locks onto the clip and allows for superior weather performance as it eliminates the need for fixing penetrations through the pan.

Another great benefit of the clip system is that Espan® has great spanning capabilities and eliminates the need for an often expensive substrate.

The clips are fixed directly onto the purlins at recommended spans depending on thickness and wind loadings.

The clip is manufactured from Zincalume® and comes standard with a 4mm coreflute pad that acts as a separator and cushion.

Espan® 340 has been designed for style and performance in mind. The high ribs create strong defined shadow lines and combined with concealed fixings provide for superior weather performance.
