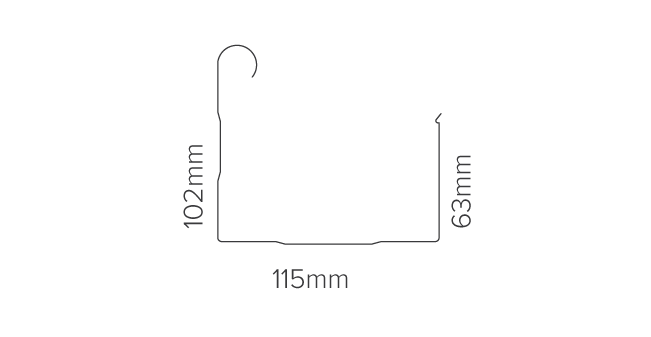

CROSS SECTIONAL LINE DRAWING

Squareline

About
A popular rainwater system solution with the clean, bold lines of traditional box gutter but with more modest dimensions, it has become popular for use in residential applications. Squareline looks great with profiled longrun sheeting or tile roofing. Squareline Gutter is manufactured standard in COLORSTEEL® MAXX® -refer datasheet for material availability per manufacturing location and bracket options.
Availabilty
Manufacturing Locations: Christchurch. Available nationwide.

Downloads

Download All

Installation details available for download in PDF, DWG, DXF & RVT files

Rainwater Information Brochure

Gutter Capacity and Bracket Details

Gutter Installation Details

Squareline Gutter Datasheet

Eco Choice Certificates

Masterspec Specification Link

Colorsteel Fire Testing of Coated Steel Products

Colorsteel Environmental Categories Residential

Colorsteel Environmental Categories Commercial

Colorsteel Colour Brochure

BPIS Building Product Information Sheet

NZMRM Code of Practice Version September 2023

Get a Free Quote

THE COLORSTEEL® RANGE

All colours are available in COLORSTEEL® ENDURA® and COLORSTEEL® MAXX®. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.

Cloud

Titania

Gull Grey

Sandstone Grey

New Denim Blue

Grey Friars

Windsor Grey

FlaxPod®

Thunder Grey

Slate

Ironsand

Ebony

Lichen

Mist Green

Permanent Green

Karaka

Desert Sand

Scoria

Pioneer Red

Lignite
