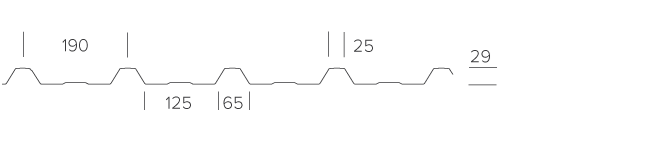

CROSS SECTIONAL LINE DRAWING
MC760
- A POPULAR AND VERSATILE PROFILE
- MC760 is a 5 rib trapezoidal roofing profile that can be used in commercial and residential applications as roof and wall cladding. MC760 offers the value of Corrugate whilst being able, by design, to achieve roof pitches down to 3 degrees.
- Cover
- 760 mm
- Sheet Width
- 810 mm
- Minimum Pitch
- 3° (minimum pitch will increase depending on sheet lengths - please refer to information sheet.)
- Curving
- Bullnose, Drape and Spring Curving options available
- Application
- Residential, Commercial, Rural, Industrial roofing and cladding
- Orientation
- Roofing and both vertically and horizontally laid cladding
- Availabilty
- Manufactured in Auckland, Wellington, New Plymouth,Hastings and Tauranga. Available from all Metalcraft Roofing branches.
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Product Flyer
BPIS Building Product Information Sheet
Loadspan and Fixing Tables - Steel
Residential Roof Details
Residential Vertical
Residential Horizontal Wall Cladding
Commercial Roof Details
Commercial Vertical Wall Cladding Details
Commercial Horizontal Wall Cladding Details
Metalcraft Roofing Company Brochure
COLORSTEEL® Fire Testing of Coated Steel Products
COLORSTEEL® Environmental Categories
COLORSTEEL® Colorsteel Color Brochure
COLORSTEEL® Maintenance Recommendations
COLORSTEEL® Maxam™ Product Information Sheet
NZMRM Installation Guide
Masterspec Specification Link
Metalcraft Profile Spec Details
Are you renovating your home? If so why don't you check our our sister companies Architectural Hardware range.
KnK Architectural Hardware & Italian Wrought Iron, formerly known as Knobs 'n Knockers. Built on an enduring reputation for superior quality, value, and service, KnK is a leading New Zealand architectural hardware supplier for over 35 years. We have five showrooms nationwide providing an excellent backdrop of our extensive range.
Our key emphasis is our commitment to our people and customers, which underlines our focus on design, quality, and affordability. KnK is the leading architectural hardware supplier of choice for homeowners, builders, developers, and the design community.
https://www.knkhardware.co.nz/
SELECT A GUTTER, FASCIA OR DOWNPIPE?
THE COLORSTEEL® RANGE
All colours are available in COLORSTEEL® Maxam™. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.
