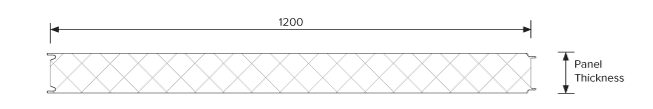

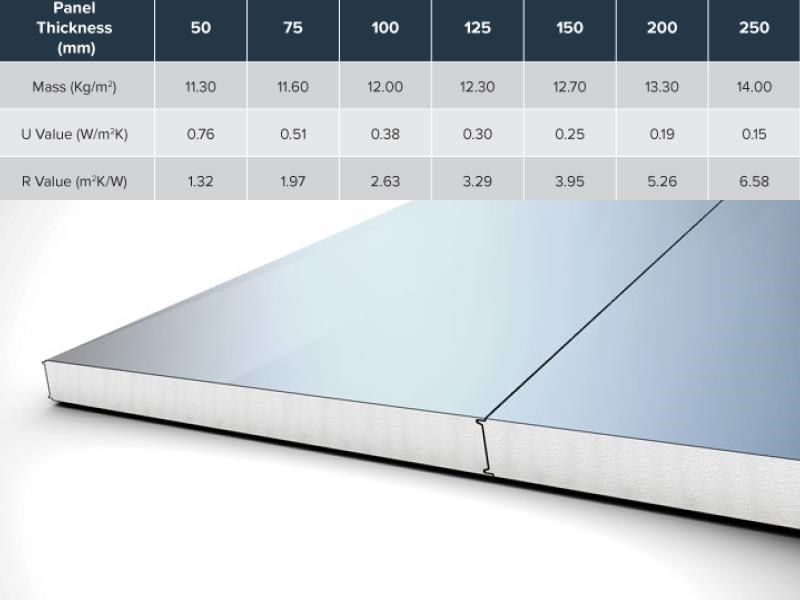

CROSS SECTIONAL LINE DRAWING
ThermoPanel EPS
- EPS core
- The Metalcraft Insulated EPS Panel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant treated Expanded Polystyrene (EPS) core. EPS core, whilst having a fire retardant additive is not fire rated.
- MANUFACTURED:
- Auckland, Available Nationwide
- ORIENTATION:
- External wall cladding and as walling, ceiling for controlled environments.
- SHEET LENGTH:
- Maximum sheet lengths is 24m. Sheet lengths greater than 15m un-piloted truck, longer lengths available depending on freight restrictions to site.
- LAPS:
- End lapped upto 16m then step joints required
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Loadspan Table and Product Information
Controlled Environment Details
External Wall Cladding Details
Product Technical Statement upto 2.5Kpa
Product Technical Statement above 2.5Kpa
Codemark Installation Guide
Codemark Specifications
Codemark Care and Maintenance
Codemark Certificate
Metalcraft Codemark Designer Declaration
Masterspec Specification Link
Metalcraft Insulated Panels Ancillaries Brochure
Metalcraft Aluminium Extrusions Brochure
Maintenance Brochure
H1 Guide
The Metalcraft Insulated EPS Panel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a flame retardant treated Expanded Polystyrene (EPS) core. The EPS core, whilst having a flame retardant additive is not fire rated.
Metalcraft Insulated EPS Panel can be used in horizontal or vertical applications and with a range of colour, joint and profile options, it can meet the functional and aesthetic requirements demanded by a variety of facilities such as Sports Centres, Commercial premises, Offices, Warehouse and Factories.
Metalcraft Insulated EPS Panel's range of colours, joints and profiles deliver a first class finish inside and out. The panels can be joined with a standard slip joint or a tongue and groove type joint. It allows for easy and rapid installation whilst providing greater strength in walls and a clean, smooth aesthetic look.
FEATURES AND BENEFITS
Thermopanel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant Polystyrene (EPS) core.
The EPS core has a flame retardant additive. ThermoPanel is available is a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.
• A reduction of wet trades
• Efficient concealed fixing system
• Ease of cutting and trimming on site
• Minimal mess on site
• Compatibility with openings and design elements of the building
What now?
COLORSTEEL® COLOUR OPTIONS
Standard colour is Titania to both sides. All colours are available in COLORSTEEL® ENDURA® and COLORSTEEL® MAXX®. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.
Cloud
Titania
Gull Grey
Sandstone Grey
New Denim Blue
Grey Friars
Windsor Grey
FlaxPod®
Thunder Grey
Slate
Ironsand
Lichen
Mist Green
Permanent Green
Karaka
Desert Sand
Scoria
Lignite
Pioneer Red
INTERIOR PANEL

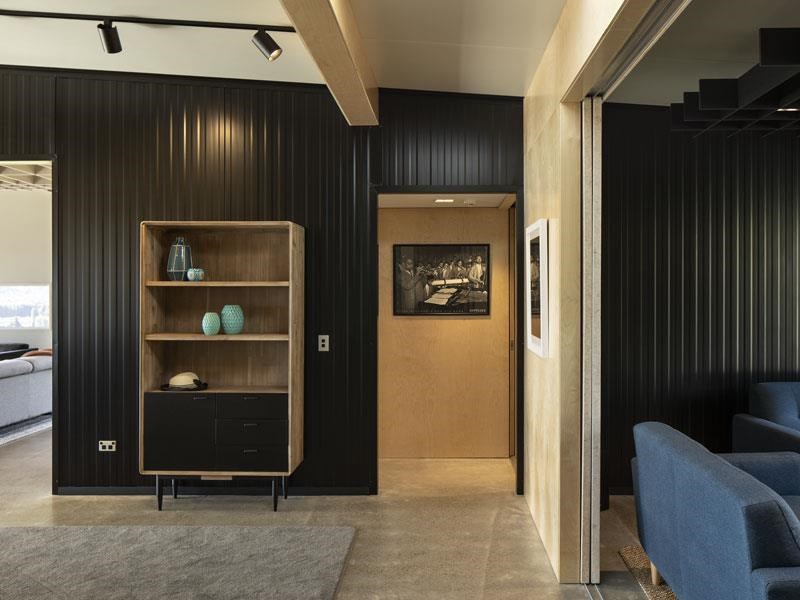

Thermopanel is not just for controlled environments, the panel can be used as exterior and interior wall panels.

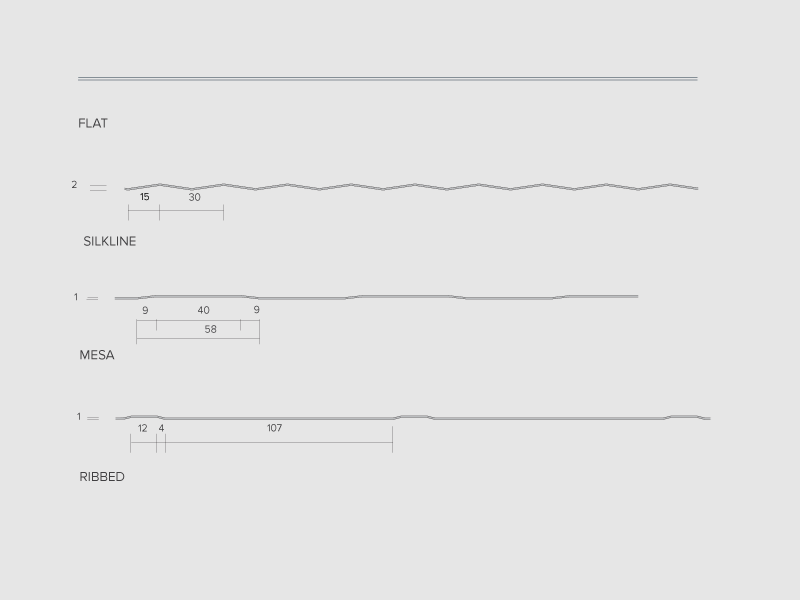

INNER SKIN OPTIONS
