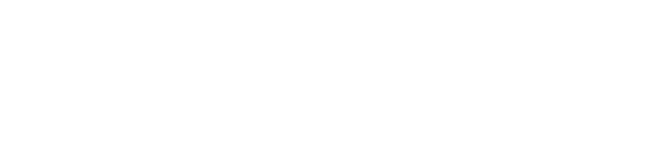

CROSS SECTIONAL LINE DRAWING

Kāhu®

Contemporary Profile
Kāhu® is a symmetrical profile designed for the modern day home it offers the same playful lines as the traditional Corrugate profile, its angular form and high ribs create bolder shadow lines for that stronger statement. The high ribs allows Kāhu® to be laid at a lower pitch than Corrugate.
Availability
Kāhu® is manufactured in Christchurch and Hamilton. Available from all Metalcraft Roofing branches.
Cover Width (Nominal)
875 mm
Sheet Width (Nominal)
950 mm
Minimum Pitch
3° minimum depending on rainwater run off and sheet length requirements.
Application
Suitable for residential and commercial
Orientation
Roofing and both horizontally and vertically laid cladding
Material Options
COLORSTEEL® Maxam™ and COLORSTEEL Altimate®.

Downloads

Download All

Installation details available for download in PDF, DWG, DXF & RVT files

Product Flyer

Environmental Choice Certificates

BPIS Building Product Information Sheet

Loadspan and Fixing Tables - Steel

Metalcraft Roofing Company Profile

Residential Roof Details

Residential Vertical Wall Cladding Details

Residential Horizontal Wall Cladding Details

Commercial Roof Details

Commercial Vertical Wall Cladding Details

Commercial Horizontal Wall Cladding Details

COLORSTEEL® Fire Testing of Coated Steel Products

COLORSTEEL® Environmental Categories

COLORSTEEL® Colour Brochure

COLORSTEEL® Maintenance Recommendations

COLORSTEEL® Maxam™ Product Information Sheet

NZMRM Code of Practice Version September 2023

NZMRM Installation Guide

Masterspec Specification Link

Metalcraft Profile Spec Details

Are you renovating your home? If so why don't you check our our sister companies Architectural Hardware range.

KnK Architectural Hardware & Italian Wrought Iron, formerly known as Knobs 'n Knockers. Built on an enduring reputation for superior quality, value, and service, KnK is a leading New Zealand architectural hardware supplier for over 35 years. We have five showrooms nationwide providing an excellent backdrop of our extensive range.

Our key emphasis is our commitment to our people and customers, which underlines our focus on design, quality, and affordability. KnK is the leading architectural hardware supplier of choice for homeowners, builders, developers, and the design community.

https://www.knkhardware.co.nz/

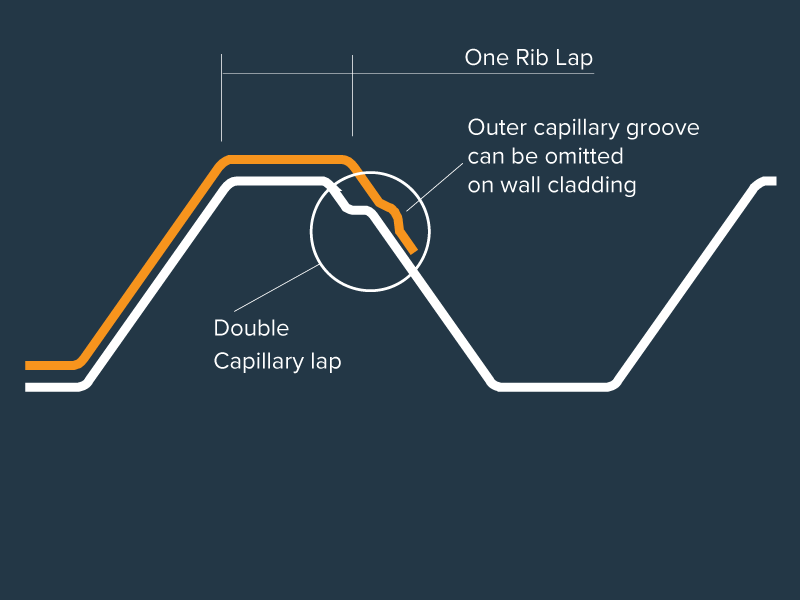

DOUBLE CAPILLARY GROOVE FOR GREATER PERFORMANCE

Greater weather performance is achieved with the double capillary overlap as it provides an extra capillary barrier to the standard capillary groove, giving you extra peace of mind.

The double capillary overlap requires only a one rib lap. This increases the cover sheet size and speeds up installation time, providing for a cost effective roofing and cladding solution.

For wall cladding applications the exposed capillary groove on the overlap can be omitted providing for a smoother appearance.

What now?

THE COLORSTEEL® RANGE

All colours are available in COLORSTEEL® Maxam™. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.

Cloud

Titania

Gull Grey

Sandstone Grey

New Denim Blue

Grey Friars

Windsor Grey

FlaxPod®

Thunder Grey

Slate

Ironsand

Ebony

Lichen

Mist Green

Permanent Green

Karaka

Scoria

Pioneer Red

TuiTuft®

StonePeak™ Matte

Sandscape®

SandBar™

GET BOLD WITH COLORSTEEL®

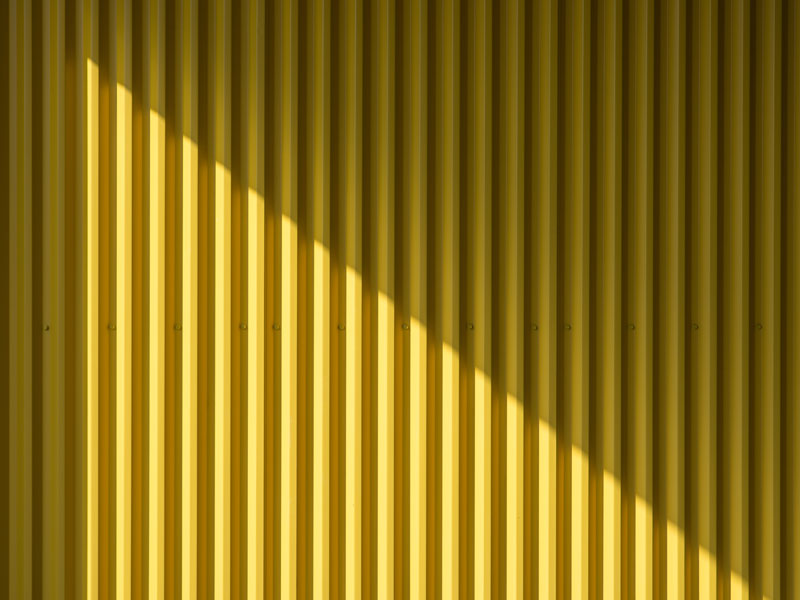

If you want something other than grey, how about KowhaiGlow from colorsteel®

Its bound to make a statement!

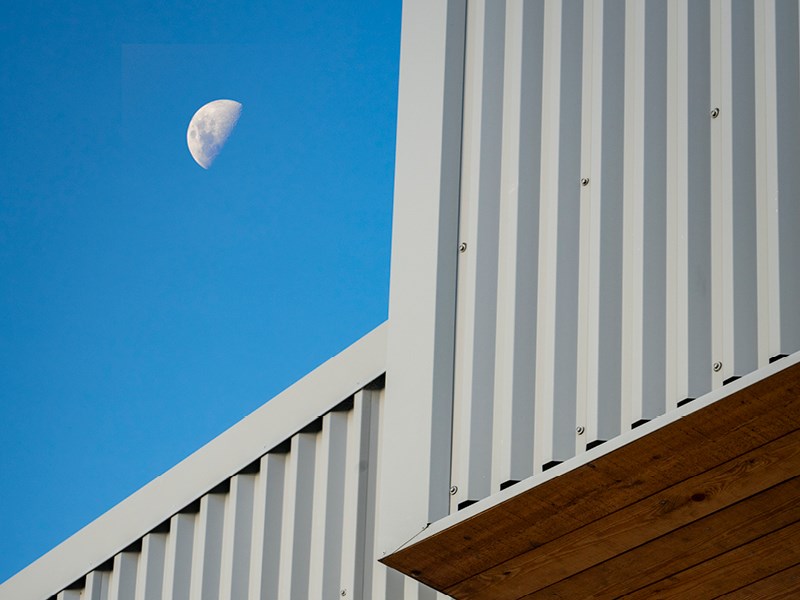

A BOLD STATEMENT TO ANY HOME

Kāhu® was designed to maximize the visual impact. High angular ribs create deep shadow lines for a bolder statement for any home or commercial project.
