CROSS SECTIONAL LINE DRAWING

Kāhu®

Contemporary Profile
Kāhu® is a symmetrical profile designed for the modern day home it offers the same playful lines as the traditional Corrugate profile, its angular form and high ribs create bolder shadow lines for that stronger statement. The high ribs allows Kāhu® to be laid at a lower pitch than Corrugate.
Availability
Kāhu® is manufactured in Christchurch and Hamilton. Available from all Metalcraft Roofing branches.
Cover Width (Nominal)
875 mm
Sheet Width (Nominal)
950 mm
Minimum Pitch
3° minimum depending on rainwater run off and sheet length requirements.
Application
Suitable for residential and commercial
Orientation
Roofing and both horizontally and vertically laid cladding
Material Options
COLORSTEEL® ENDURA®, COLORSTEEL® MAXX®. Aluminium also available.

Downloads

Download All

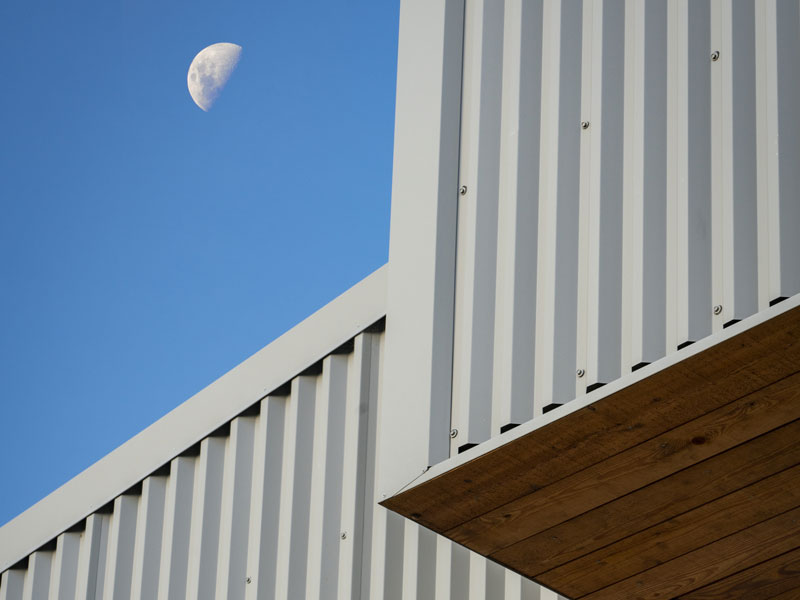

A BOLD STATEMENT TO ANY HOME

Kāhu® was designed to maximize the visual impact. High angular ribs create deep shadow lines for a bolder statement for any home or commercial project.

The great feature about Kāhu™ is the double capillary overlap to the side lap which allows for greater performance:

• Greater weather performance is achieved with the double capillary overlap as it provides an extra capillary barrier to the standard capillary groove, giving you extra peace of mind.

• The double capillary overlap requires only a one rib lap. This increases the cover sheet size and speeds up installation time, providing for a cost effective roofing and cladding solution.

• For wall cladding applications the exposed capillary groove on the overlap can be omitted providing for a smoother appearance.





DOUBLE CAPILLARY GROOVE FOR GREATER PERFORMANCE

Greater weather performance is achieved with the double capillary overlap as it provides an extra capillary barrier to the standard capillary groove, giving you extra peace of mind.

The double capillary overlap requires only a one rib lap. This increases the cover sheet size and speeds up installation time, providing for a cost effective roofing and cladding solution.

For wall cladding applications the exposed capillary groove on the overlap can be omitted providing for a smoother appearance.

Get a Kāhu® fence to match your roof?

THE COLORSTEEL® RANGE

All colours are available in COLORSTEEL® ENDURA® and COLORSTEEL® MAXX®. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.

Karaka

Gull Grey

Permanent Green

Mist Green

Lichen

FlaxPod®

Ironsand

Lignite

Desert Sand

Slate

Grey Friars

New Denim Blue

Thunder Grey

Sandstone Grey

Cloud

Titania

Scoria

Pioneer Red

Ebony

Windsor Grey

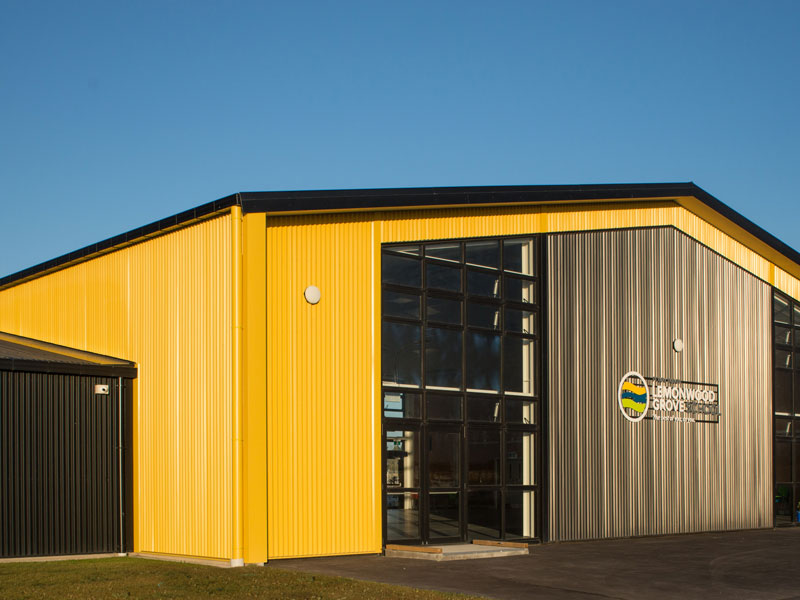

GET BOLD WITH COLORSTEEL®

If you want something a bit different then grey, then how about KowhaiGlow™ from COLORSTEEL® -Its bound to make a statement!
