ThermoSpan EPS

EPS Core

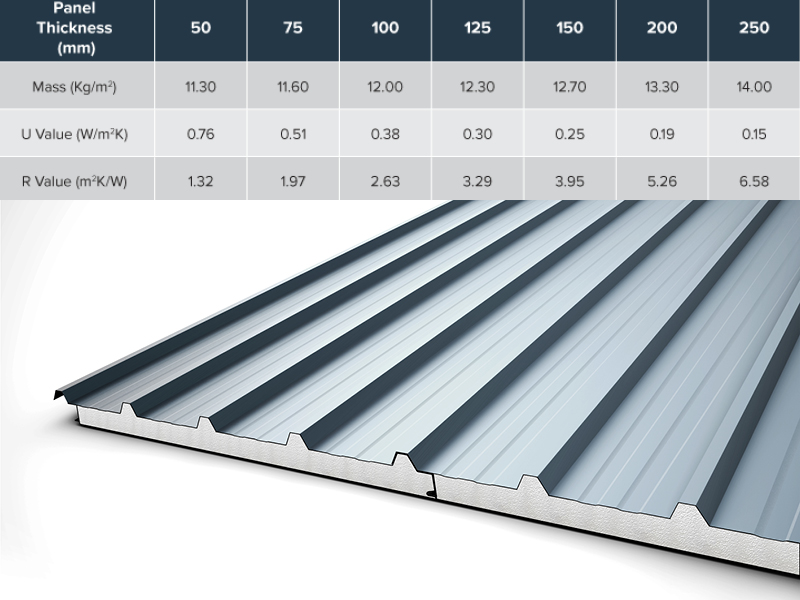

ThermoSpan EPS consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated.
MINIMUM PITCH:
3 degrees
MANUFACTURED:
Auckland, available nationwide
ORIENTATION:
Roof and wall cladding
SHEET LENGTH:
15m un-piloted truck, longer lengths available depending on freight restrictions to site
LAPS:
End lapped upto 16m then step joints required

Downloads

Download All

Installation details available for download in PDF, DWG, DXF & RVT files

Loadspan Tables and Product Information

Commercial Roof Details

Codemark Installation Guide

Residential Roof Details

Codemark Specifications

Product Technical Statement upto 2.5Kpa

Product Technical Statement above 2.5Kpa

Codemark Care and Maintenance

Metalcraft Codemark Designer Declaration

Masterspec Specification Link

Metalcraft Insulated Panels Ancillaries Brochure

Metalcraft Aluminium Extrusions Brochure

RESIDENTIAL OR COMMERCIAL

ThermoSpan EPS can be used in a variety of residential and commercial, roof and wall cladding applications. ThermoSpan EPS panel's are also available in a limited colour range.

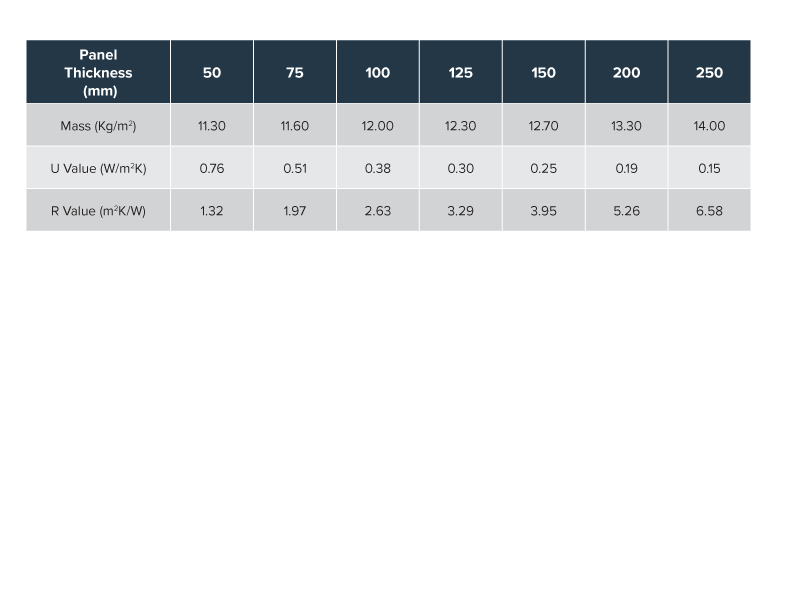

FEATURES AND BENEFITS

ThermoSpan EPS consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated.

Product Benefits:

  • Fire Retardant treated
  • Long Spans
  • Thermally Efficient
  • Non ozone depleting
